CCTV Surveillance System Catalogs:

Package 1

Package 2

Package 3

Package 4

Package 5

Package 6
DVR STANDALONE
AVC 791 4CH H.264 DVR AVC 790 4CH H.264 DVR AVC 787 16 CH DVR

  • H.264 video compression format.

  • 4 channel video input and 1 video output.

  • Built-in VGA output.

  • IR remote control.

  • 1 audio input and 1 audio output (Mono)

  • Maximum recording rate (Frame) : 704x480 pixels with 30 IPS <NTSC> / 704x576 pixels with 25 IPS <PAL>

  • Maximum recording rate (CIF) : 352x240 pixels with 120 IPS <NTSC> / 352x288 pixels with 100 IPS <PAL>

  • Support 1 SATA HDD ( capacity up to 1 TB )

  • Multiplex Operation such as live display, record, playback, backup and network operations.

  • 3 pre-defined motion detection area selectable.

  • Network Protocol : TCP/IP, PPPOE, DHCP and DDNS.

  • DC 19V. Dimensions : 343(W)x59(H)x223(D)

  • H.264 video compression format.

  • 4 channel video input and 1 video output.

  • 1 audio input and 1 audio output (Mono)

  • Maximum recording rate (Frame) : 704x480 pixels with 30 IPS <NTSC> / 704x576 pixels with 25 IPS <PAL>

  • Maximum recording rate (CIF) : 352x240 pixels with 120 IPS <NTSC> / 352x288 pixels with 100 IPS <PAL>

  • Support 1 SATA HDD ( capacity up to 1 TB )

  • Multiplex Operation such as live display, record, playback, backup and network operations.

  • 3 pre-defined motion detection area selectable.

  • Network Protocol : TCP/IP, PPPOE, DHCP and DDNS.

  • DC 19V. Dimensions : 343(W)x59(H)x223(D)

  • AVC 787 16 Ch Network Mpeg 4 Recording DVR ( Long Hour recording version )

  • Pentaplex Format ( Display/Record/Playback/Back-up/Remote Access Simultaneously )

  • 4 Audio Input, 2 Audio Output, On Screen Display Function, PIP, Video Loss Detection.

  • 480 FPS Refresh Rate. 16 TTL Alarm Input, 1 Alarm Output, Pre-alarm Recording.

  • 2 x Digital Zoom, PTZ Function Supports. ( Pelco-D ), Auto Recovery After Power Failure.

  • Auto Email Image Upload. TCP/IP, ICMP, SMTP, HTTP, FTP, DDNS Supports, M Jpeg Viewing Over Web. Support USB1.1 Back-up

  • DC 19V. Dimension: 432mm x 90mm x 326mm.
RM. 1888.00 RM. 1688.00 ???
AVC 785 8 CH DVR AVC 783 4 CH DVR AVC 760 4 CH DVR

  • AVC 785 8 Ch Network Mpeg 4 Recording DVR ( Long Hour Recording Version )

  • Pentaplex Format ( Display/Record/Playback/Back-up/Remote Access Simultaneously )

  • 4 Audio Input, 2 Audio Output, On Screen Display Function, PIP, Video Loss Detection.

  • 240 Refresh Rate. 8 TTLAlarm Input, 1 Alarm Output, Pre-alarm Recording ( 8 MB )

  • 2 x Digital Zoom, PTZ Function Supports ( Pelco-D ), Auto Recovery After Power Failure.

  • Auto Email Image Upload. TCP/IP, ICMP, SMTP, HTTP, FTP, DDNS Supports, M Jpeg Viewing
    Over Web. Support USB1.1 Back-up

  • DC 19V. Dimension: 432mm x 90mm x 3263mm.

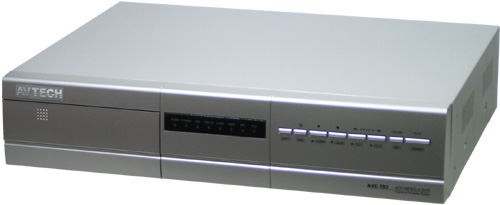

  • AVC 783 4 Ch Network Mpeg 4 Recording DVR (Support 3G PDA Phone) /400GB HDD

  • Pentaplex Format ( Display/Record/Playback/Back-up/Remote Access Simultaneously )

  • 4 Audio Input, 2 Audio Output, On Screen Display Function, PIP, Video Loss Detection.

  • 120 FPS Refresh Rate. 4 TTLAlarm Input, 2 Alarm Output, Pre-alarm Recording.

  • 2 x Digital Zoom, PTZ Function Supports. ( Pelco-D ), Auto Recovery After Power Failure.

  • Auto Email Image Upload. TCP/IP, ICMP, SMTP, HTTP, FTP, DDNS Supports, M Jpeg Viewing Over Web. Support USB1.1 Back-up. With IR Remote Control

  • DC 19V. Dimension: 343mm x 59mm x 223mm.

  • AVC 760 4 Ch Network Mpeg 4 Recording DVR ( Long Hour Recording Version )

  • Pentaplex Format ( Display/Record/Playback/Back-up/Remote Access Simultaneously )

  • 1 Audio Input, 1 Audio Output, On Screen Display Function, PIP, Video Loss Detection.

  • 120 Refresh Rate. 4 TTLAlarm Input, 1 Alarm Output, Pre-alarm Recording ( 8 MB )

  • 2 x Digital Zoom, PTZ Function Supports ( Pelco-D ), Auto Recovery After Power Failure.

  • Auto Email Image Upload. TCP/IP, ICMP, SMTP, HTTP, FTP, DDNS Supports, M Jpeg Viewing Over Web.

  • DC 19V. Dimension: 343mm x 59mm x 223mm.
??? ??? RM. 1588.00
ADV 4CH 104E H.264 DVR ADV 4CH USB DVR AVTECH 4 Channel MPEG- 4 / JPEG Network DVR

  • H.264 video compression format delivers the clear quality and extended record hour.

  • Supports Full D1(720X576), Half D1(720X288), and CIF(366X288) resolution.

  • Uncompromised the current recording when perform playback recroded data.

  • USB backup the optimized DVR settings to keep further.

  • Hexaplex Operation DVR provided simultaneously operations.

  • Support handphone viewing and selectable picture view or motion picture view.

  • USB pendrive support for backup recorded data. (.H264)

  • 3rd party software provided for playing .H264 files and convertable to .AVI standard video file.

  • SATA interface and support up to 1 TB hard disk.

  • ADV 4Ch USB DVR High Quality Video Input, USB 2.0 Back-up.

  • 120 FPS Display & 30 FPS Record
    Modify Motion Jpeg. Support 1 x 200 GB Harddisk.

  • 4 Alarm Input, 1 Alarm Output, Video Loss Detection, Power Loss Memory

  • Motion Detect, USB Cable Provided For PC Linking K Back-up.
    Dimension: 315mm x 224mm x 52mm,

  • DC 12V, 2A. Weight: 1.6KG

  • Add-on Network Remote and USB Backup, IR Remote Control

  • MPEG-4/JPEG compression format, real time performance with 120 IPS (NTSC) / 100 IPS (PAL)

  • Advanced motion trigger recording, triplex operation and multilingual OSD

  • 500GB HDD can record more than 90 days. (4CH, CIF Best Quality, 30IPS)

  • Record audio with 1ch in and 1ch out

  • Advanced motion detection function and convenient search function
??? ??? ???
AVTECH Integrated 4 Channel MPEG-4 / JPEG DVR AVC 777W 16 CH NETWORK DVR FSC 4CH NETWORK DVR AUTO SWITCHING

  • Includes features such as MPEG-4/JPEG compression format

  • Real time performance with 120fps( NTSC) / 100fps(PAL)

  • Advanced motion trigger recording & triplex operation

  • 500GB HDD can record more than 90 days

  • Record audio with 1ch in and 1ch out

  • Advanced motion detection function and convenient search function

  • AVC 777W 16 Ch Network DVR Motion Jpeg Compression Format

  • 4 Audio Input, 2Audio Output, On Screen Display Function, PIP, Video Loss Detection.

  • 120 FPS Display, 18 FPS Record. TTL Alarm Input

  • 2 x Digital Zoom.

  • Auto Email Image Upload. TCP/IP, ICMP, SMTP, HTTP, FTP, DDNS Supports.

  • AC 240V Input.
    Dimension: 432mm x 110mm x 325mm, Weight: 5.7KG

  • FSC 4Ch Network DVR Auto Switching, Motion Detect, Advance Jpeg Compression Format.

  • 120 FPS Refresh Rate, 30 FPS Record & Playback. Watch Dog Feature, USB Back-up Function. Max Supports 2 x 200GB IDE Harddisk,

  • 4 Alarm Input, 1 Alarm Output, Video Loss Detection. Buzzer Output When Alarm Alert,

  • PC Software & USB Cable Provided For PC Linking 8 Back-up Support Remote View, Record, Playback Via lnternet, Support FIX, DDNS, TCP/IP I DHCP Power Loss Recovery Function.

  • Dimension: 430mm x 300mm x 48mm, Weight: 3.5KG
??? ??? ???
FSC 4CH USB BACK-UP, AUTO SWITCHING, MOTION DETECT, ADVANCE JPEG FSC 9CH NETWORK DVR AUTO SWITCHING FSC 16CH NETWORK DVR AUTO SWITCHING

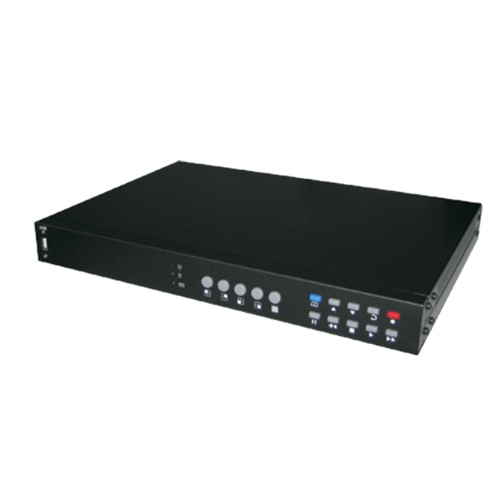

  • FSC 4Ch USB Back-up, Auto Switching, Motion Detect, Advance Jpeg Compression Format.

  • 120 FPS Refresh Rate, 30 FPS Record & Playback. Watch Dog Feature. Max Supports 2 x 200GB IDE Harddisk,

  • 4 Alarm Input, 1 Alarm Output, Video Loss Detection. Buzzer Output When Alarm Alert,

  • PC Software & USB Cable Provided For PC Linking 8 Back-up Power Loss Recovery Function.

  • Dimension: 430mm x 300mm x 48mm, Weight: 3.5KG

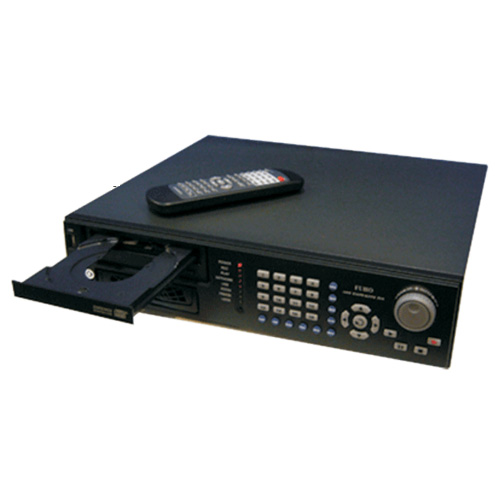

  • FSC 9Ch Network DVR Auto Switching, Motion Detect, Advance Jpeg Compression Format.

  • 270 FPS Refresh, 120 FPS Record K Playback. Watch Dog Feature, USB & CD Writer Back-up Function. Max Supports 2 x 200GB IDE Harddisk,

  • 8 Alarm Input, 1 Alarm Output, Video Loss Detection.
    Buzzer Output When Alarm Alert,

  • PC Software & USB Cable Provided For PC Linking 8 Back-up. Support Remote View, Record, Playback Via lnternet, Support FIX, DDNS, TCP/IP & DHCP 1 Ch Audio & Video Real Time Recording. IR Remote Controller. Triplex ( Record, Playback & Network Sim )

  • Dimension: 430mm x 370mm x 96mm Standard 2 U Casing

  • FSC 16Ch Network DVR Auto Switching, Motion Detect, Advance Jpeg Compression Format.

  • 480 FPS Refresh,120 FPS Record & Playback. Watch Dog Feature, USB K CD Writer Back-up Function. Max Supports 2 x 200GB IDE Harddisk,

  • 8 Alarm Input, 1 Alarm Output, Video Loss Detection.
    Buzzer Output When Alarm Alert,

  • PC Software & USB Cable Provided For PC Linking 8 Back-up. Support Remote View, Record, Playback Via lnternet, Support FIX, DDNS, TCP/IP & DHCP 1 Ch Audio & Video Real Time Recording. IR Remote Controller. Triplex ( Record, Playback & Network Sim )

  • Dimension: 430mm x 370mm x 96mm Standard 2 U Casing
??? ??? ???
